Bulk Milk Coolers


We are manufacturers, suppliers and exporters of Bulk Milk Coolers circular and horizontal, cheese press, strainers for domestic, farms & small commercial uses.


Bulk Milk Coolers (Circular / Horizontal)
Features
  • Faster cooling owing to direct expansion
  • Conforms to ISO 5708 2A II- latest version
  • Robust design
  • Durable tank made of AISI 304 SS
  • Hermatically sealed compressor
  • Digital temp controller
  • Occupy minimum space
  • Energy conscious
  • Designed to be user friendly

Tank Details
  • Designed and manufactured as Per ISO 5708
  • Circular & rectangular tank with AISI 304 grade SS materials
  • Special evaporation with spot welding and laser welding
  • Suitable for two milking
  • Top cover of B.M.C. has provided proper stiffening pipe & holes for milk inlet
  • Oulet conncetions with B/F valve
  • SS dip stick for measuring quantity of milk is provided
  • Insulated with 40 kg. cc. mtr. density puff material
  • For nos legs with 50mm level adjustment
  • Tank capacity available : 0.2, 0.3, 0.5, 1, 2, 3, 5, 8, 10 KL
  • Optional : online weight & temperature analysis with software.

Condensing Unit Details
  • Designed as per guidelines of ISO / R1662 which meets cooling requirement of B.M.C. specification in ISO 5708. Sealed compressors of reputed make Air Cooled Condenser. Split type design, easy to install
Agitator
  • Free from viberator and noise
  • Maintain equal temp through out the tank

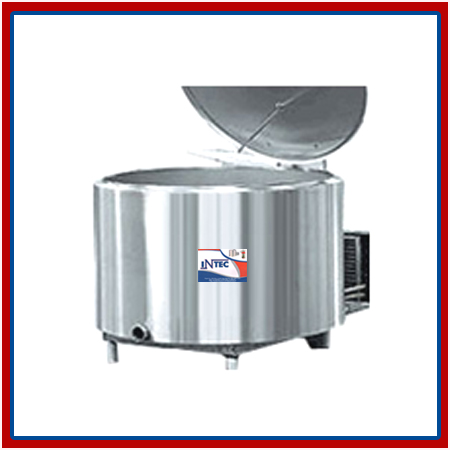

Bulk Milk Coolers (Circular)

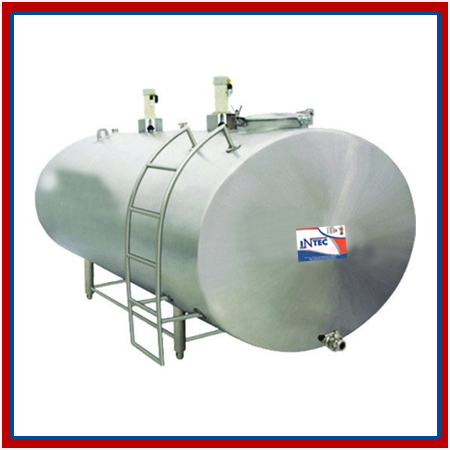

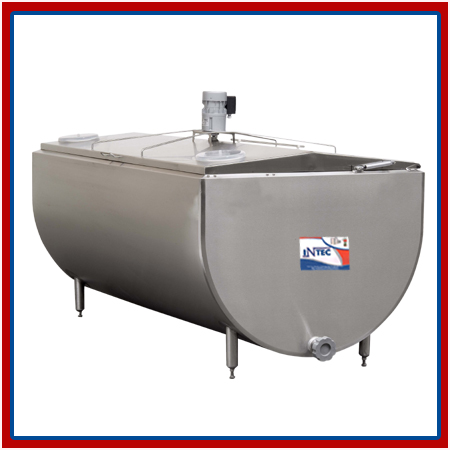

Bulk Milk Coolers (Horizontal)
Bulk Milk Coolers


Technical Specification


Capacity Type BMC Tank Dimension Condensing Unit
Length Width Height Length Width Height
0.5 KL Cylindrical 1120 mm Dia 1300 mm 653 mm 667 mm 470 mm
1 KL Open Horizontal - Semi Cylindrical 1875 mm 1220 mm 750 mm 935 mm 793 mm 685 mm
2 KL Open Horizontal - Semi Cylindrical 2400 mm 1460 mm 865 mm 935 mm 793 mm 685 mm
3 KL Open Horizontal - Semi Cylindrical 2620 mm 1870 mm 1300 mm 1200 mm 790 mm 690 mm
3 KL Closed Closed Horizontal Cylindrical 3100 mm 1700 mm 1400 mm 1200 mm 790 mm 690 mm
5 KL Closed Horizontal Cylindrical 3120 mm 1870 mm 1570 mm 1200 mm 790 mm 690 mm
5 KL Closed Closed Horizontal Cylindrical 3900 mm 2000 mm 1600 mm 1348 mm 785 mm 742 mm

C.NO. DESCRIPTION BMC 300 LTR. BMC 500 LTR. BMC 1000 LTR. BMC 2000 LTR. BMC 3000 LTR. BMC 5000 LTR.
Refrigeration Unit:
A. Direct Expension Direct Expension Direct Expension Direct Expension Direct Expension Direct Expension Direct Expension
Make Of Compressor Emerson Emerson Emerson Emerson Emerson Emerson
Model KCJ-511 CR-22 CR-36 CR-36 X 2 CR-53 X 2 ZR81 X 2
No. Of Compressor One One One Two Two Two
Cooling Capacity 2250 KCAL/HR 4788 KCAL/HR 7535 KCAL/HR 7535 X 2 KCAL/HR 11340 X 2 KCAL/HR 16120 X 2 KCAL/HR
No. Of Fan 1 NO. 1 NO. 1 NO. 2 NOS. 4 NOS. 4 NOS.
Type Of Refrigerent R-22 R-22 R-22 R-22 R-22 R-22
Milk Tank AISI 304 S.S.
B. Rated Capacity 300 LTR. 500 LTR. 1000 LTR. 2000 LTR. 3000 LTR. 5000 LTR.
Cross Capacity 330 LTR. 550 LTR. 1100 LTR. 2200 LTR. 3300 LTR. 5500 LTR.
Make Intec Intec Intec Intec Intec Intec
Material Of Construction AISI S.S. 304 AISI S.S. 304 AISI S.S. 304 AISI S.S. 304 AISI S.S. 304 AISI S.S. 304
Finish 2 B 2 B 2 B 2 B 2 B 2 B
Type of Tank Circular Vertical Circular Vertical Circular Vertical Horizontal Semi-Cylinderical Horizontal Eleptical - Close Horizontal Eleptical - Close
Thickness Of Inner Sheet 1.5 MM 1.5 MM 1.5 MM 1.5 MM 1.5 MM 1.5 MM
Thickness Of Outer Sheet 1.0 MM 1.0 MM 1.0 MM 1.5 MM 1.5 MM 1.5 MM
RPM & No. of Agitator 21 RMP & One 21 RMP & One 21 RMP & One 21 RMP & One 21 RMP & One 21 RMP & One
CIP Manual Manual Manual Manual Spray Ball Spray Ball
Type Of Insulation P.U.F. P.U.F. P.U.F. P.U.F. P.U.F. P.U.F.
Thickness Of Insulation 50 MM 50 MM 50 MM 50 MM 50 MM 50 MM
Efficiency Of Insulation AS PER ISO 5708 AS PER ISO 5708 AS PER ISO 5708 AS PER ISO 5708 AS PER ISO 5708 AS PER ISO 5708
Design Parameter
C. Ambient Temp. 38 DEG.C 38 DEG.C 38 DEG.C 38 DEG.C 38 DEG.C 38 DEG.C
Max. Cooling Time 3.0 Hours 3.0 Hours 3.0 Hours 3.0 Hours 3.0 Hours 3.0 Hours
Milk Temp. Range 35 DEG. TO 4 DEG. 35 DEG. TO 4 DEG. 35 DEG. TO 4 DEG. 35 DEG. TO 4 DEG. 35 DEG. TO 4 DEG. 35 DEG. TO 4 DEG.
Power Requirement Single Phase Single Phase Single/Three Phase Single/Three Phase Single/Three Phase Single/Three Phase
Connected Load
D. Compressor 1 X 4.70 = 4.70 AMP 1 X 8.0 = 8 AMP 1 X 13.6 = 13.6 AMP 2 X 5 = 10 AMP 2 X 12 = 24 AMP 2 X 14 = 28 AMP
Condensor Fan 1 X 0.42 = 0.42 AMP 1 X 0.85 = 0.85 AMP 1 X 0.85 = 0.85 AMP 2 X 0.85 AMP = 1.70 AMP 4 X 0.85 AMP = 3.40 AMP 4 X 0.85 AMP = 3.40 AMP
Agitator Motor 1 X 0.35 = 0.35 AMP 1 X 0.35 = 0.35 AMP 1 X 0.35 = 0.35 AMP 1 X 0.35 AMP = 0.35 AMP 1 X 0.55 AMP = 0.55 AMP 1 X 0.55 AMP = 0.55 AMP
Milk Pump 1 X 2.00 = 2.00 AMP 1 X 2.0 = 2.00 AMP 1 X 2 = 2.00 AMP 1 X 2 AMP = 2.00 AMP 1 X 2 AMP = 2.00 AMP 1 X 2 AMP = 2.00 AMP
Recommended DG Set 5 KVA 5 KVA 7.5 KVA Single PH.15 KVA & 3 PH.10 KVA 25 KVA 30 KVA
Recomd. Servo stablilzer 5 KVA 5 KVA 7.5 KVA Single PH.15 KVA & 3 PH.10 KVA 25 KVA 30 KVA
Packed Dimension (LXBXH) 56" X 48" X 69" 84" X 49" X 54" 97" X 61" X 63" 114"x58"x64" 108" X 76" X 101" 144"x78"x97"
Overall Dimension Of BMC 53" X 44" x 73" 79" X 44" X 73" 92" X 53" X 86" 112" X 56" X 74" 98" X 73" X 109" 133" X 75" X 109"
Minimum Quantity 1-5 1-5 1-5 1-5 1-5 1-5
NOTE : SERVO VOLTAGE STABLIZER SPECIFICATION DEPEND UPON EXISTING VOLTAGE RATING IN PARTICULAR AREA

BMC 1000 LTR. BMC 2000 LTR. BMC 3000 LTR. BMC 5000 LTR.
Direct Expension Direct Expension Direct Expension Direct Expension
Emerson Emerson Emerson Emerson
CR-36 CR-36 X 2 CR-53 X 2 ZR81 X 2
One Two Two Two
7535 KCAL/HR 7535 X 2 KCAL/HR 11340 X 2 KCAL/HR 16120 X 2 KCAL/HR
1 NO. 2 NOS. 4 NOS. 4 NOS.
R-22 R-22 R-22 R-22
1000 LTR. 2000 LTR. 3000 LTR. 5000 LTR.
1100 LTR. 2200 LTR. 3300 LTR. 5500 LTR.
Intec Intec Intec Intec
AISI S.S. 304 AISI S.S. 304 AISI S.S. 304 AISI 304
2 B 2 B 2 B 2 B
Circular Vertical Horizontal Semi-Cylinderical Horizontal Eleptical - Close Horizontal Eleptical - Close
1.5 MM 1.5 MM 1.5 MM 1.5 MM
1.0 MM 1.5 MM 1.5 MM 1.5 MM
21 RMP & ONE 21 RMP & ONE 21 RMP & ONE 21 RMP & ONE
Manual Manual Spray Ball Spray Ball
P.U.F. P.U.F. P.U.F. P.U.F.
50 MM 50 MM 50 MM 50 MM
AS Per ISO 5708 AS Per ISO 5708 AS Per ISO 5708 AS Per ISO 5708
38 DEG.C 38 DEG.C 38 DEG.C 38 DEG.C
3.0 HOURS 3.0 HOURS 3.0 HOURS 3.0 HOURS
35 DEG. TO 4 DEG. 35 DEG. TO 4 DEG. 35 DEG. TO 4 DEG. 35 DEG. TO 4 DEG.
Single/Three Phase Single/Three Phase Single/Three Phase Single/Three Phase
1 X 13.6 = 13.6 AMP 2 X 5 = 10 AMP 2 X 12 = 24 AMP 2 X 14 = 28 AMP
1 X 0.85 = 0.85 AMP 2 X 0.85 AMP = 1.70 AMP 4 X 0.85 AMP = 3.40 AMP 4 X 0.85 AMP = 3.40 AMP
1 X 0.35 = 0.35 AMP 1 X 0.35 AMP = 0.35 AMP 1 X 0.55 AMP = 0.55 AMP 1 X 0.55 AMP = 0.55 AMP
1 X 2 = 2.00 AMP 1 X 2 AMP = 2.00 AMP 1 X 2 AMP = 2.00 AMP 1 X 2 AMP = 2.00 AMP
7.5 KVA Single PH.15 KVA & 3 PH.10 KVA 25 KVA 30 KVA
7.5 KVA Single PH.15 KVA & 3 PH.10 KVA 25 KVA 30 KVA
97" X 61" X 63" 114"x58"x64" 108" X 76" X 101" 144"x78"x97"
92" X 53" X 86" 112" X 56" X 74" 98" X 73" X 109" 133" X 75" X 109"
Minimum Quantity 1-5 1-5 1-5
